311mm 346mm Rock Reamer Foundation Pile HDD Hole Opener

اطلاعات پایه
محل منبع: هبی چین
نام تجاری: Pangolin
قیمت: Negotiation
زمان تحویل: 5-15 روز کاری
شرایط پرداخت: T/T
اطلاعات تکمیلی
رنگ: نیاز مشتری صنایع کاربردی: کارهای ساختمانی ، انرژی و معدن
استفاده: حفاری سوراخ استفاده کنید: حفاری خوب
وزن: 200 تا 400 کیلوگرم ماشین تایپ: ابزار مته زنی

Foundation Pile HDD Hole Opener,Rock Reamer Hole Opener,311mm HDD Hole Opener


Rock Reamer Hole Opener


311mm HDD Hole Opener

توضیحات محصول

311mm 346mm Rock Reamer Foundation Pile HDD Hole Opener

Rock Reamer Foundation Pile With Best Sealed Bearing HDD Hole Opener Drill


1. Cutting Structure
In response to the characteristics that inserts in different areas on the cone have different cutting actions, conical inserts are placed in permanent contact area and wedge inserts are placed in alternative contact area so that the drilling efficiency is greatly improved. Wear resistance of cutting structure is enhanced by setting diamond inserts in the permanent contact area of the cone where inserts are severely worn. Tungsten carbide inserts are placed on cone top face to protect cone body from abrasive erosion.
2. Gauge Structure
With active cutting gauge protection inserts on bit body, the bit has good gauge protection and up drill capability.
3. Hydraulic Design
Small angled watercourse design increased the shirttail thickness and can effectively prevent the watercourse erosion.Optirnized hydraulics structure improves the clearing capability and increases ROP.
4. Product Application
It is suitable for sidetracking, deep well drilling and old well



The reamer bits mainly consists of more than 3 cones.cutting structure with premium tungsten carbide
hardfacing o premium tungsten carbide insert of formulas and new techniques is utilized,and increases
wear-resistance capability of reamer.


Product parameters


Product name HDD hole opener
Usage horizontal directional drilling
Application formation medium hard with relatively higher compressive strength and hard stringers, such as hard shale, sandstone and limestone, etc.
Weight 200kg-400kg



Reamer Size

Cone size and # of Cones Threads
Cone size #of Cones Cone size # of Cones
10“ 6 1/2” 3     NC23 NC26(2 3/8IF) D50 D80 NC31(2 7/8IF) NC38(3 1/2IF)
12“ 8 1/2” 3





8 1/2”or 9 1/2”


For 8 1/2”-9 1/2” Cone:

NC23 NC26(2 3/8”IF) D50 D80 NC31(2 7/8”IF) NC38(3 1/2”IF)


For 12 1/4”-13 5/8” Cone:

4”IF 4 1/2IF 5 1/2FH 6 5/8FH

18”-20“ 5 12 1/4” 4
22”-24“ 6



12 1/4” or 13 5/8”

28”-30” 7 6
32”-34” 8 7
36“-38” 9 8
40“-42” 10 9
44“-46” 11 10
48”-50” 12-13 11


Pic Show

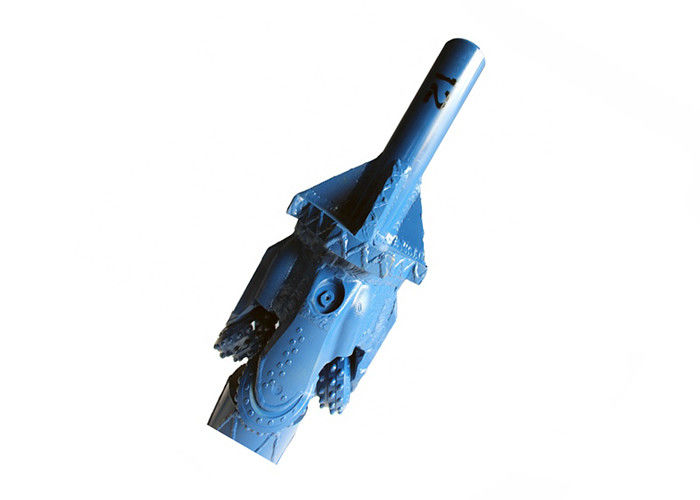

311mm 346mm Rock Reamer Foundation Pile HDD Hole Opener 0

Drill bit hole opener HDD drilling reamer positioning drilling tool 1


Pangolin (China) Construction Machinery Co., Ltd. is a drill manufacturer with complete testing equipment and strong technical force. Our products have a wide range, high quality, reasonable price, and timely delivery, which are widely used in oilfields, drilling, non-excavation fields and other industries. Our products are widely recognized and trusted by users, and can meet the ever-changing economic and social needs. To
We welcome new and old customers from all walks of life to contact us for future business relations and mutual success!


Drill bit hole opener HDD drilling reamer positioning drilling tool 2




Q: How to order the products?
A: Order directly!


Q: How to control the quality?
A: We should be checking & testing everyone drill bit before shipment.


Q: Do you agree sample order?
A: Yes, we are welcome your sample order to testing our quality.


Q: Can we select the color of the drill bit?
A: Yes, we have the color of bule, golden, silvery for your choose. If you need, we can make the drill bit color based on yours.
